At 2050 Latimer Road in Nanaimo, Waywest Mechanical worked in a commercial mechanical room where aging boilers — showing corrosion and water damage at their bases — sit alongside a bank of new stainless high-efficiency boilers with new hydronic piping, circulator pumps, expansion tanks and controls. The project shows the boiler, hydronic and commercial mechanical work Waywest carries out for buildings in Nanaimo.
Monday–Friday, 7:00 AM–4:30 PM · quotes within the hour
Before and after
What the photos show

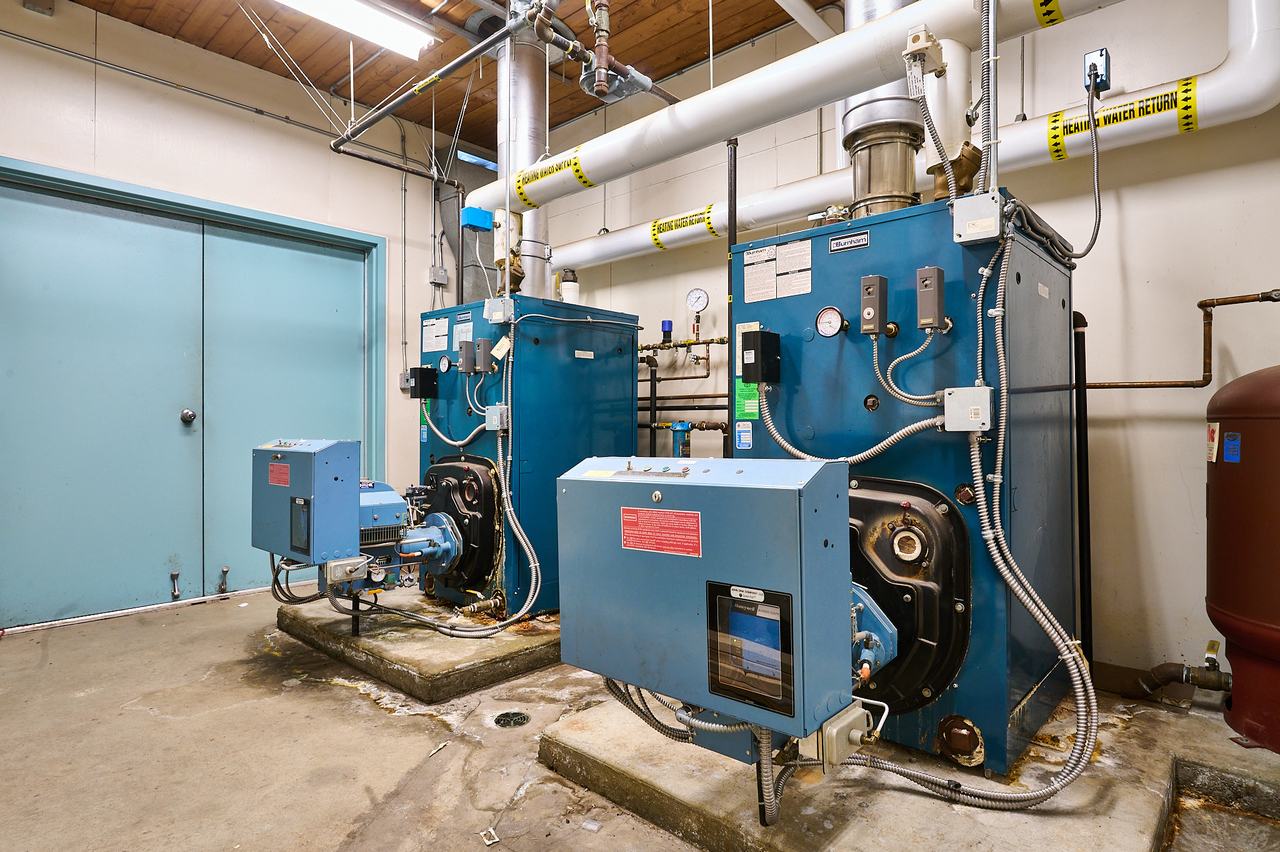

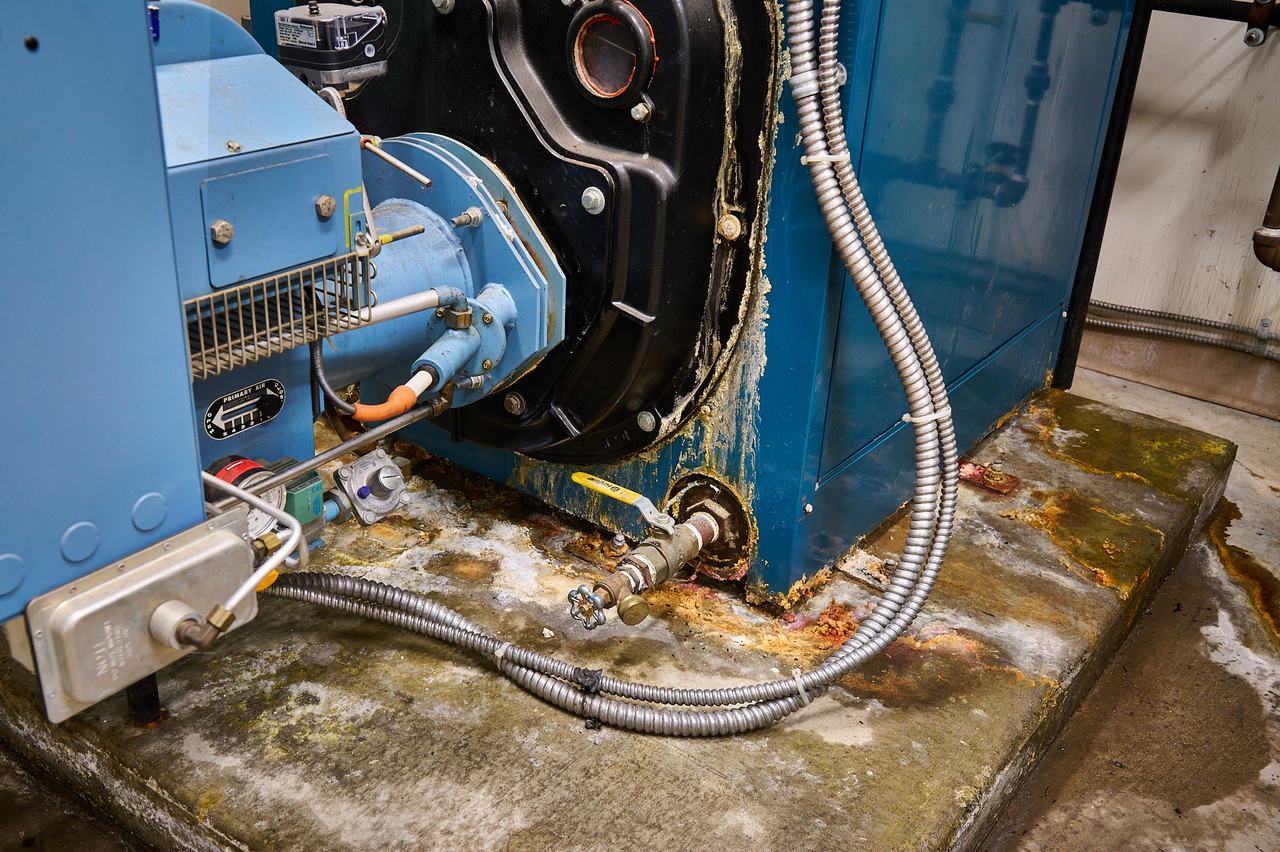

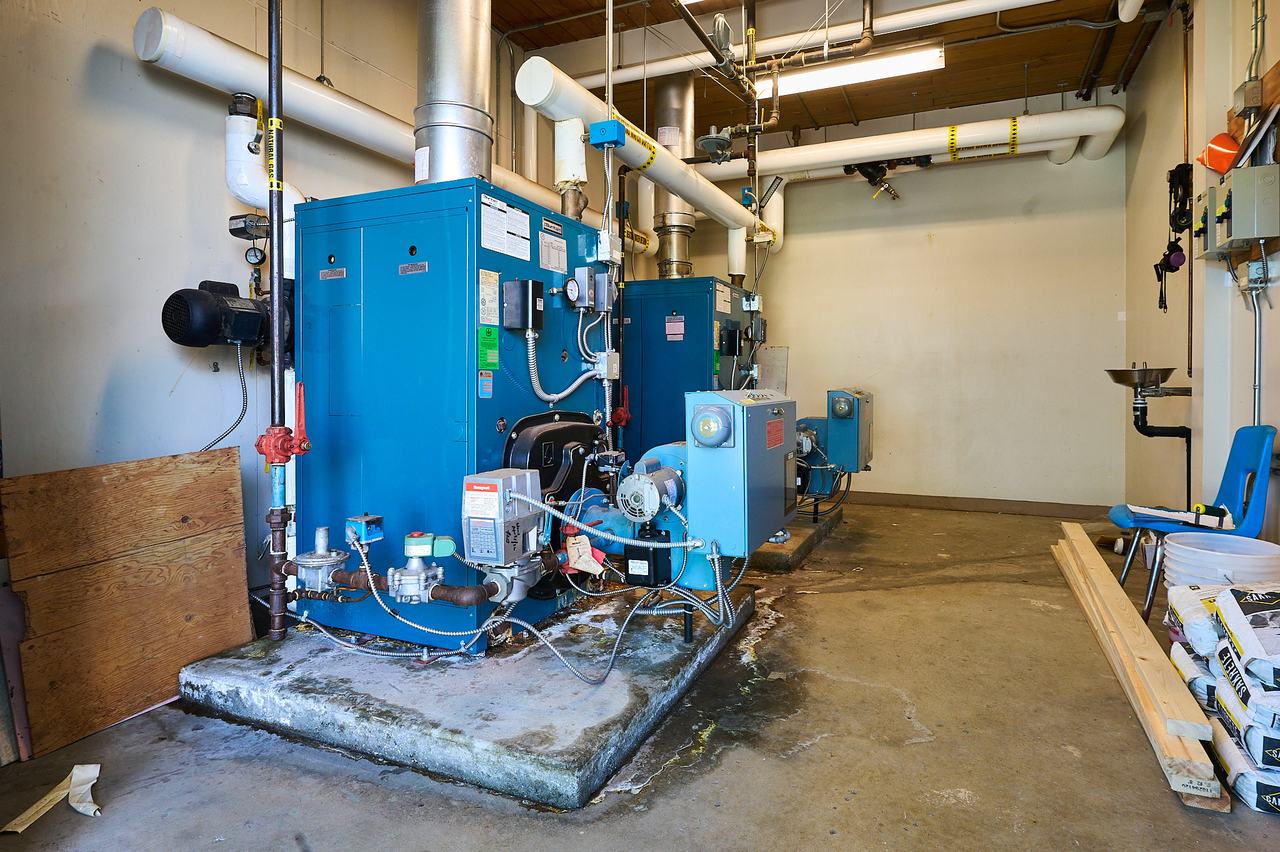

Before. The original mechanical room held several older boilers with their burners, gas trains and flue piping. At their bases, the photos show corrosion, rust staining and water damage on the concrete pads — typical of boilers late in their service life.

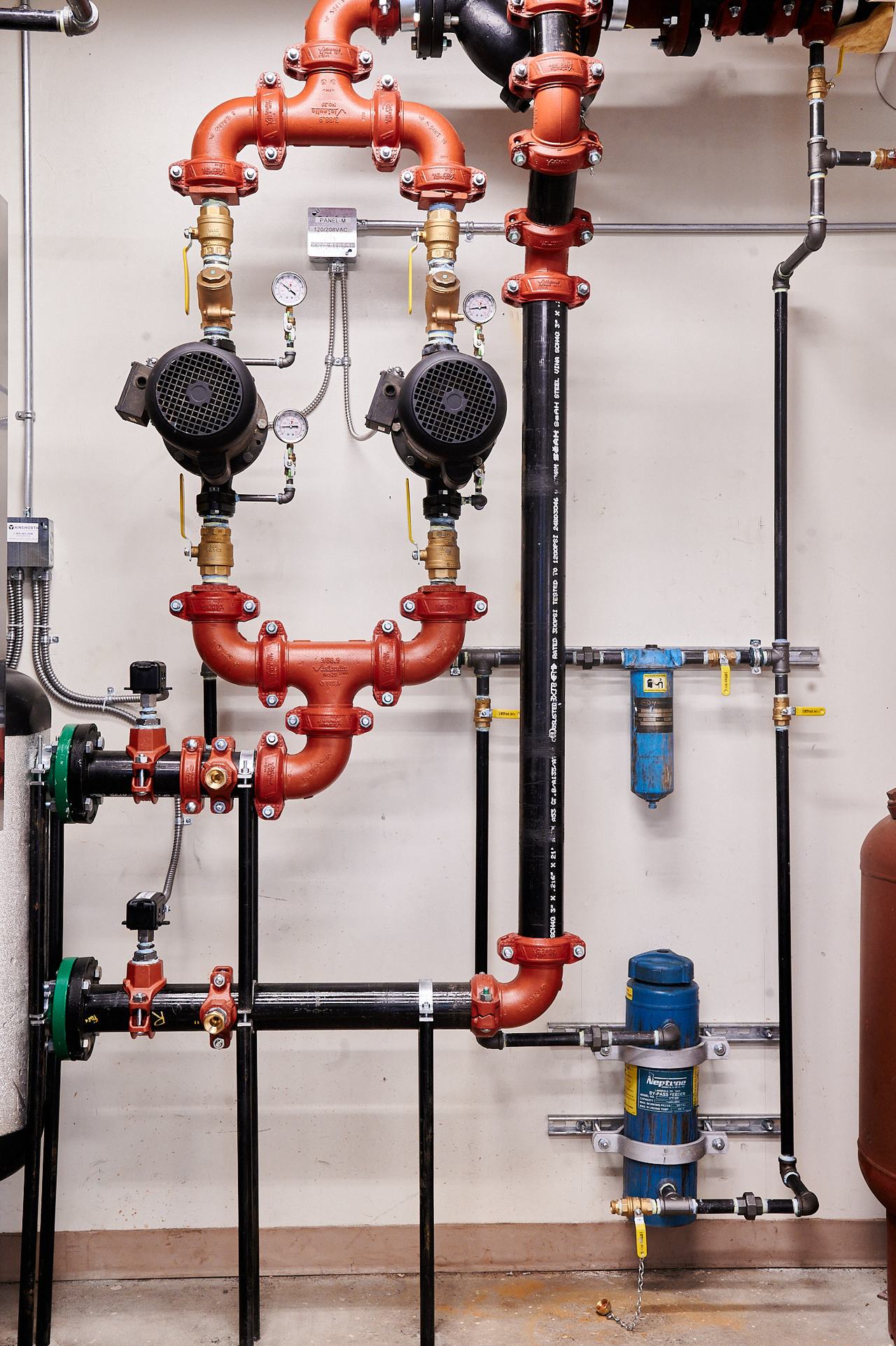

After. The upgraded room shows a bank of four stainless high-efficiency boilers mounted in a row on a steel stand, with new hydronic supply and return piping, red-painted heating circuits, circulator pumps, an expansion tank and wall-mounted controls, alongside insulated piping and new venting.
Waywest removed the building's old boiler system and installed a new high-efficiency plant: four SL-series condensing boilers, with new piping and controls.
Why this kind of upgrade matters
Commercial boiler rooms are often the single largest energy user in a building. Replacing tired, oversized boilers with staged high-efficiency units:
- Cuts gas consumption at the partial loads buildings run at most of the year
- Adds redundancy — one boiler down no longer means no heat
- Removes the leak and failure risk of corroded equipment
- Gives the building modern controls and a documented, maintainable system
Waywest handles this work under its Technical Safety BC licence, from the boilers and gas piping to the hydronic loops and pipe fabrication in our own shop — then keeps it running with PropertyCare maintenance.
Quick facts
- Emergency service
- 24/7 at 250-616-1446 — typically on site within an hour in Nanaimo
- Office hours
- Monday–Friday, 7:00 AM–4:30 PM, 250-729-2394
- Service area
- Nanaimo and Vancouver Island, Victoria to Port Hardy
- Licensing
- TSBC licence LGA0004592; licensed, bonded and insured
- Quotes
- Reply within the hour during business hours
- Page updated
Common questions
Why replace old commercial boilers instead of repairing them?
Older commercial boilers with corrosion at the base, repeated leaks or failing burners become less efficient and less reliable every season. Modern condensing boilers use far less gas, and a staged bank of smaller units keeps heat available if one needs service.
What is a multi-boiler system?
A multi-boiler system uses several smaller boilers controlled together instead of one large boiler. Boilers stage on as heating demand rises, which improves efficiency at partial load and provides redundancy.
Does Waywest do commercial boiler work in Nanaimo?
Yes. Waywest is TSBC licensed (LGA0004592) for gas, boiler and pressure vessel work and services, replaces and maintains commercial boiler plants in Nanaimo and across Vancouver Island.
